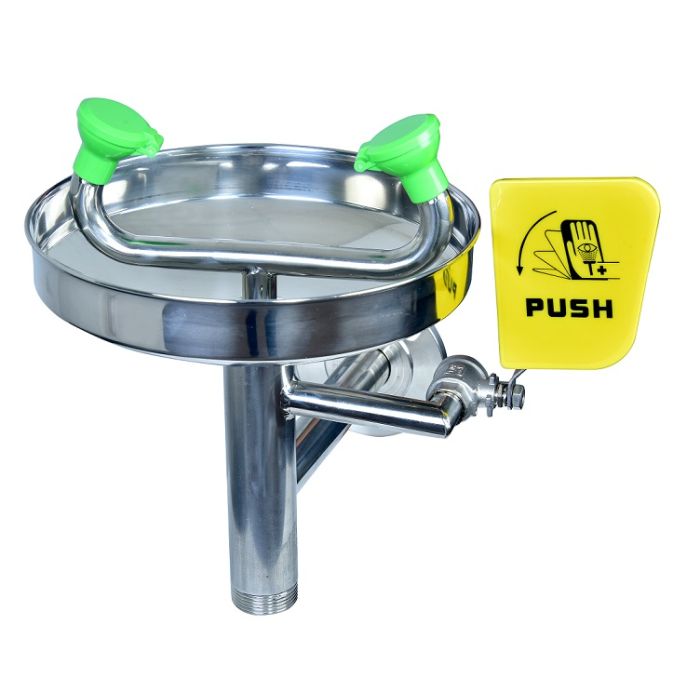

Modern MD508A Stainless Steel Wall Mounted Eye Wash

Product Application

• Emergency eyewash and shower units are designed to rinse contaminants from the user's eyes, face or body.
• As such, these units are forms of first aid equipment to be used in the event of an accident.
• However, they are not a substitute for primary protective devices (including eye and face protection and protective clothing) or for safety procedures when handling hazardous materials.
• MD508A Wall Mounted Eye Wash main material is 304 stainless steel. (Also avaiable in SS 316L version)
• Inlet Water Supply:Drinking water or filtered water.
• Supply: 1/2" FNPT
• Waste: 1 1/4" MNPT
• Eye wash flow >= 11.4L/Min

 Training

• Simply installing emergency equipment is not sufficient means of ensuring worker safety.
• It is also very important that employees are trained in the location and proper use of emergency equipment.
• Research shows that after an incident has occurred, rinsing eyes within the first ten seconds is essential.
• Therefore, employees at the highest risk of damaging their eyes in each department must be trained regularly.
• All employees must know the location of the emergency equipment and be aware that quick and effective rinsing is important in an emergency.
• The sooner the injured employee's eyes are rinsed, the lower the risk of damage. Every second is important when preventing permanent damage to save time for medical treatment.
• All employees must be reminded that this equipment is only to be used in emergencies, tampering with the equipment may cause a malfunction.
• In emergencies, the afflicted may be unable to open their eyes. Employees may feel pain, anxiousness and loss.
• They may need others' help to reach the equipment and use it.
• Push the handle to spray the liquid.
• When rinsing the eyes, use both hands' thumb and index finger to open the eyelids, rinsing for at least 15 minutes.
• After rinsing, seek medical treatment immediately.
• HSE and supervisory personnel must be notified that the equipment has been used.
• Attention :Wrap every joint between pipes with PTFE tape
• Accessories & Components:Main Body,Eye Wash Bowl,Eye Wash Nozzle,Lever,Instruction Sheet,Warning Sign

Additional Details

• Emergency eyewash units are designed to rinse contaminants from the user's eyes.
• As such, these units are forms of first aid equipment to be used in the event of an accident.
• MD508A walll mounted Eyewash is constructed in high grade SS304 stainless steel. (Also available in SS 316L version)
• Highly resistant to corrosion caused due to chemicals, salty off-shore environments etc.
• ANSI Certified (ANSI Z358.1 -2014)
• Free Delivery in Riyadh, Jeddah, Makkah, Dammam, Al Khobar, Jubail
• 1 Year manufacturer’s warranty with free repair service in KSA
• Installation Services Offered in all cities in KSA (Charges Extra)
• Complete project documentation available including customized GA Drawings and Test Reports
• Additional Optional Accessories : Flow Switches , Pressure Reducing Valves, Dust Covers, beacon and alrams, anti-scald valves etc.
• Tested and Assembled in KSA
• Complies with Saudi Aramco Engineering Standards SAES-B-069
